Popis

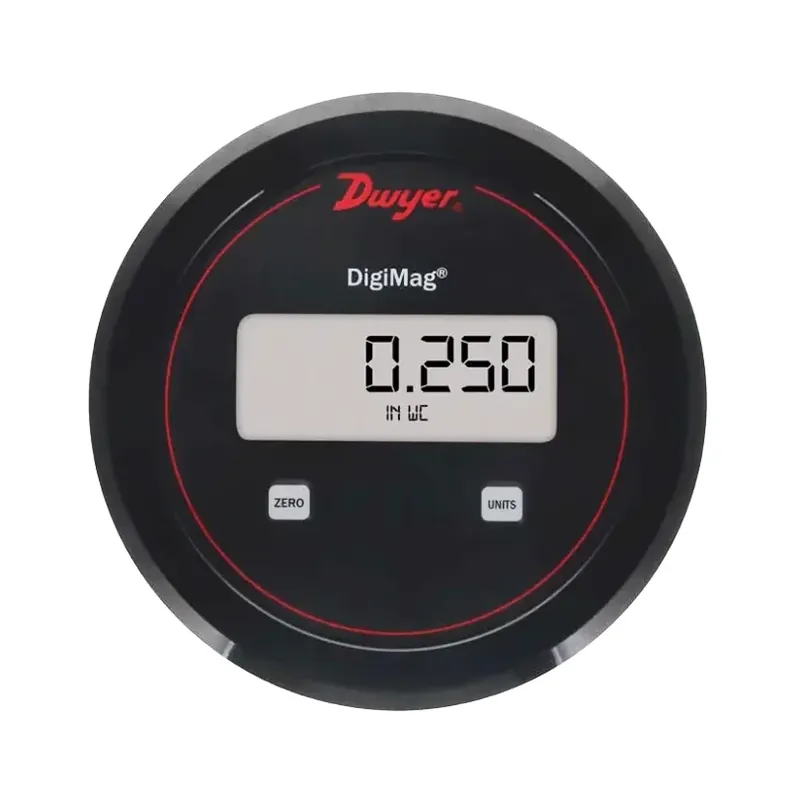

The Series DM DigiMag® Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic® gage. A wide range of models are available factory calibrated to specific ranges. The polycarbonate molded housing features integral pressure connections, which reduces installation time.
Digital push-button zero and span simplify calibration over typical turn-potentiometers. A single push-button allows field selection of 4 to 6 engineering units, depending on the range.
The model configurator above works with INWC pressure units (inch of water column, inHO). 1 INWC = 249.1 Pa, see table below.
| RANGES (conversion of INWC [inHO] to Pa/kPa) | ||
| INWC | Pa | kPa |
| 0,100 | 24,91 | |
| 0,250 | 62,27 | |
| 0,500 | 124,5 | 0,1245 |
| 1,000 | 249,1 | 0,2491 |
| 2,500 | 622,7 | 0,6227 |
| 5,000 | 1245 | 1,245 |
| 10,00 | 2491 | 2,491 |
| 25,00 | 6227 | 6,227 |
| 50,00 | 12,45 | |
| 100,0 | 24,91 |
SPECIFICATIONS:
Accuracy: ± 1% FSO for all ranges except 0.25 in w.c. @ ± 2% FSO, and ranges at or below ± 0.1 in w.c. @ ± 4% FSO
Media Compatibility: air, argon, carbon dioxide, helium, nitrogen, non-conductive gases, non-corrosive dry gases
Long Term Stability: < ± 1%FSO/year
Process Connection Size: 1/8″, 3/16″, 1/4″
Operating Temperature: -20 to 70 °C
Enclosure Ratings: IP66, NEMA Type 4X
Mounting: not position sensitive
Zero and Span Setting: push buttons
Materials: polycarbonate
Size: 127 mm x 48 mm depth
Weight: 200 g
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
