Popis

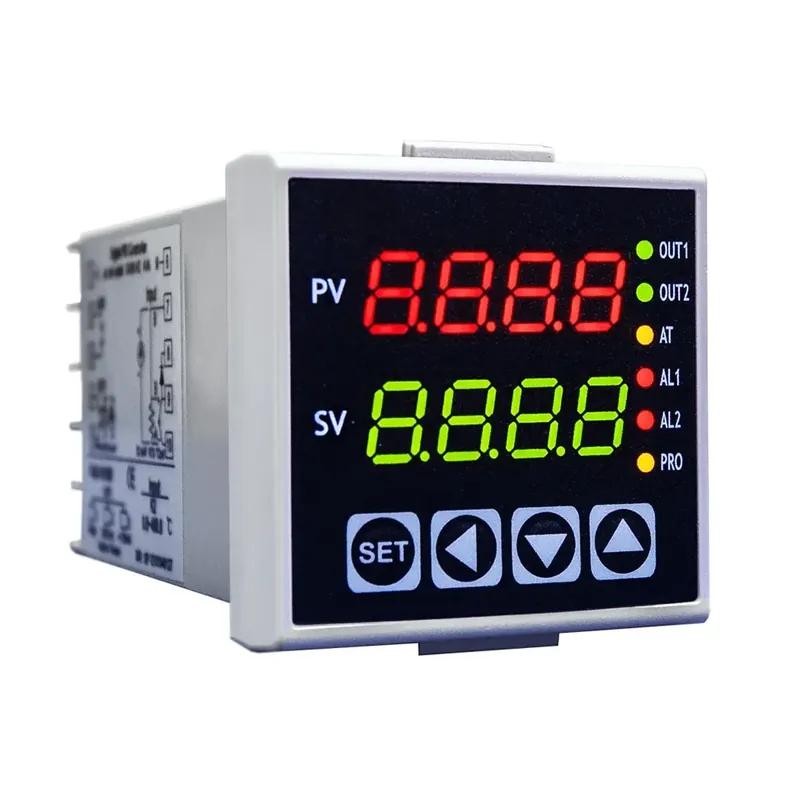

The FU48 series represents a reliable and flexible solution for controlling process variables in industrial applications. This digital process PID controller and transmitter is designed for panel mounting and combines high accuracy, intuitive operation, and broad sensor compatibility.
Key Features
- PID controlstable and precise control of process variables
- Panel mount design (48×48 mm)compact dimensions for easy integration
- Universal inputssupports standard current and voltage signals (420 mA, 010 V, etc.)
- Digital signal processinghigh accuracy and strong immunity to interference
- Clear LED displayeasy setup and value monitoring
- Alarm functionsconfigurable limits and protection features
Applications
- Industrial furnaces and heating systems
- Packaging and production lines
- Food and chemical industries
- HVAC applications
- Laboratory equipment
Key Benefits
The FU48 offers an ideal balance between performance, simplicity, and cost-effectiveness. It enables precise process control, improves production efficiency, and contributes to consistent output quality.
Configuration:
FU48-X11-X0X–XX-AW:
Control output 1: relay / voltage pulse (SSR) / 4-20 mA / 0-10 V
Control output 2: relay
Alarm: yes – 1x relay
–
TRS (Linear output): none / 4-20 mA / 0-10 V
Remote SV: no
Communication: none / RS485
–
Input type and range: 4-20 mA / 0-1 V / 0-10 V
–
Power: 85 to 265 Vac
Protection: IP65
The online configurator may contain all available options.
If you do not find what you are looking for, please contact us.
