Popis

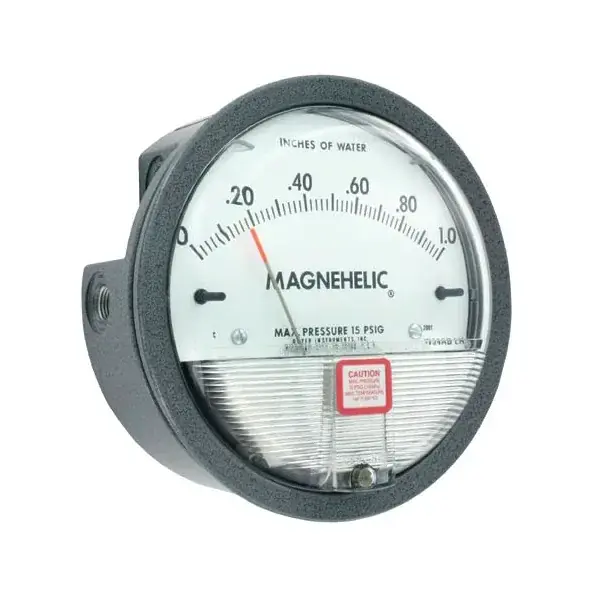

Select the Magnehelic® 2000 Series Gage for a versatile low differential pressure gage with a wide choice of 81 models and 27 options to choose from. Using Dwyers simple, frictionless Magnehelic® gage movement, it quickly indicates air or noncorrosive gas pressures–either positive, negative (vacuum) or differential. The design resists shock, vibration, over-pressures and is weatherproof to IP67.
Product applications:
Filter Monitoring, Air Velocity with Dwyer Pitot Tube, Blower Vacuum Monitoring, Fan Pressure Indication, Duct, Room or Building Pressures, Clean Room Positive Pressure Indication.
Used in Isolation/ Hospital Environments and Temporary Units (no power required)
Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
SPECIFICATIONS:
Accuracy: ± 2% (-HA model ± 1) of FS (± 3% (-HA ± 1.5%) on -0, -100PA, -125PA, -10MM
± 4% (-HA ± 2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Dial Diameter: 4″
Enclosure Ratings: IP67
Materials: Aluminum, Acrylic
Wetted Materials: Consult Factory
Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation: Vertical Diaphragm
Pressure Limits: -20 inHg to 80 psi
Pressure Type: Differential
Process Connection Note: 1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
Process Connection Size: 1/8″
Process Connection Type: NPT Female
Safety Features: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
Weight: 510 g
Complete informations can be found in the spec sheet (PDF), see the „Download“ section.
